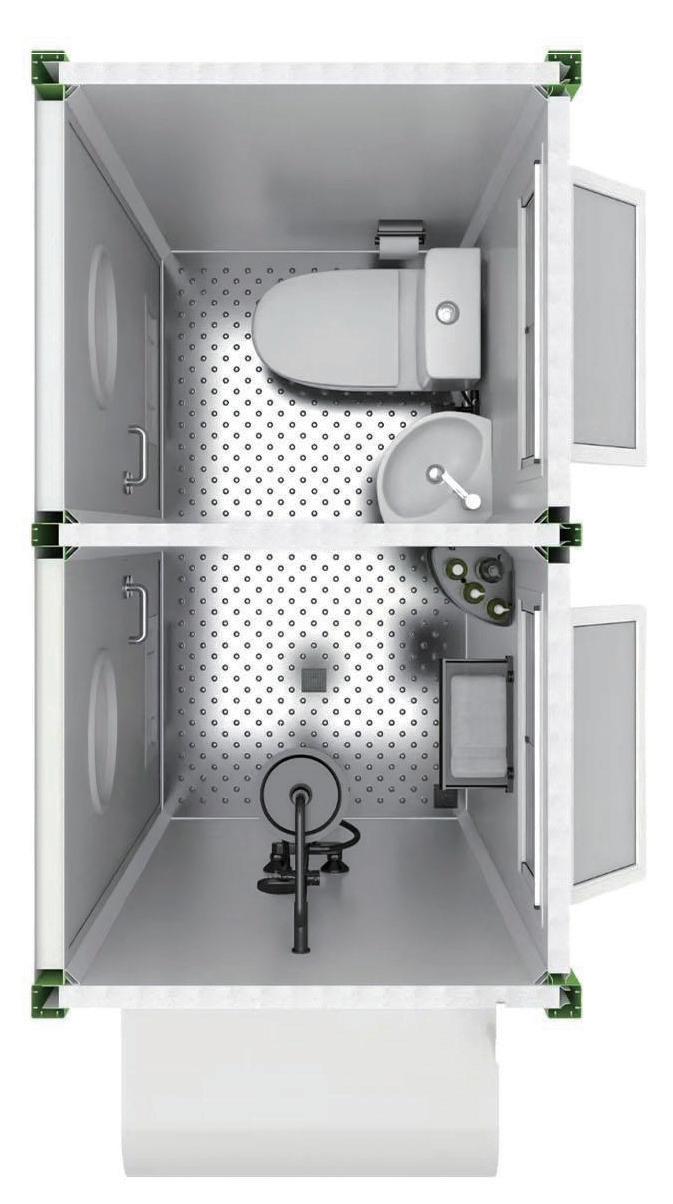

Modular mobile bathroom double toilet Dry-wet separatio (toilet + column washbasin+ Shower)



Product Configuration

304 panel stainless steel(1.2 thick), 304 urinal

Column material: 1.4 solid thickness galvanized steel plate

Top and bottom material: 1.4 Solid thickness galvanized steel plate, the whole box frame adopts electrostatic spraying process,

and the bottom is treated with anti-corrosion

Foam wallboard: 50cm

Internal configuration: Rain-proof U-PVC hanging windows, bathroom steel doors, energy-saving water tanks, Ceramic toilet bowl、ceramic wash-column basins, high-end sanitary ware, LED voice-controlled energy-saving lamps, domestic first-line brand sewage system

Product Features

1. Efficient to install and cost-saving for long-distance transportation

2.20ft container for 9 units(one shower& one restroom). 40ft container for 18 units(one shower& one restroom) (All counts refer to packaged units ready for shipping)

3. Modular quick-assembly design for fast setup

4. Easy to relocate, disassemble, and reuse

5. Sleek, solid look with quality craftsmanship

6. Powder-coated finish with anti-corrosion treatment on the base —— designed to last over 15 years

Outer diameter size

width	length	height
1220	2145	2280



Inner diameter size

width	length	height
1070	1995	1994
